Isometric Angles. Isometric pictorial isometric means equal measure. Since all lines will have correct measurements and no distortions, you can create volumetric renders of your projects with correct proportions.

PPT Isometric Projection Drawing PowerPoint Presentation from www.slideserve.com

Isometrics also provide a drafter with the ability to. The three lines al, ad and ah, meeting at point a and making 1200 angles with each other are termed isometric axes. Thus, in an isometric drawing of a cube, the three visible faces appear as equilateral parallelograms;

Source: medium.com

The isometric type famous among architects because it allows us to create perspectives in scale. It’s a type of axonometric drawing in which the same scale is used for every axis, resulting in.

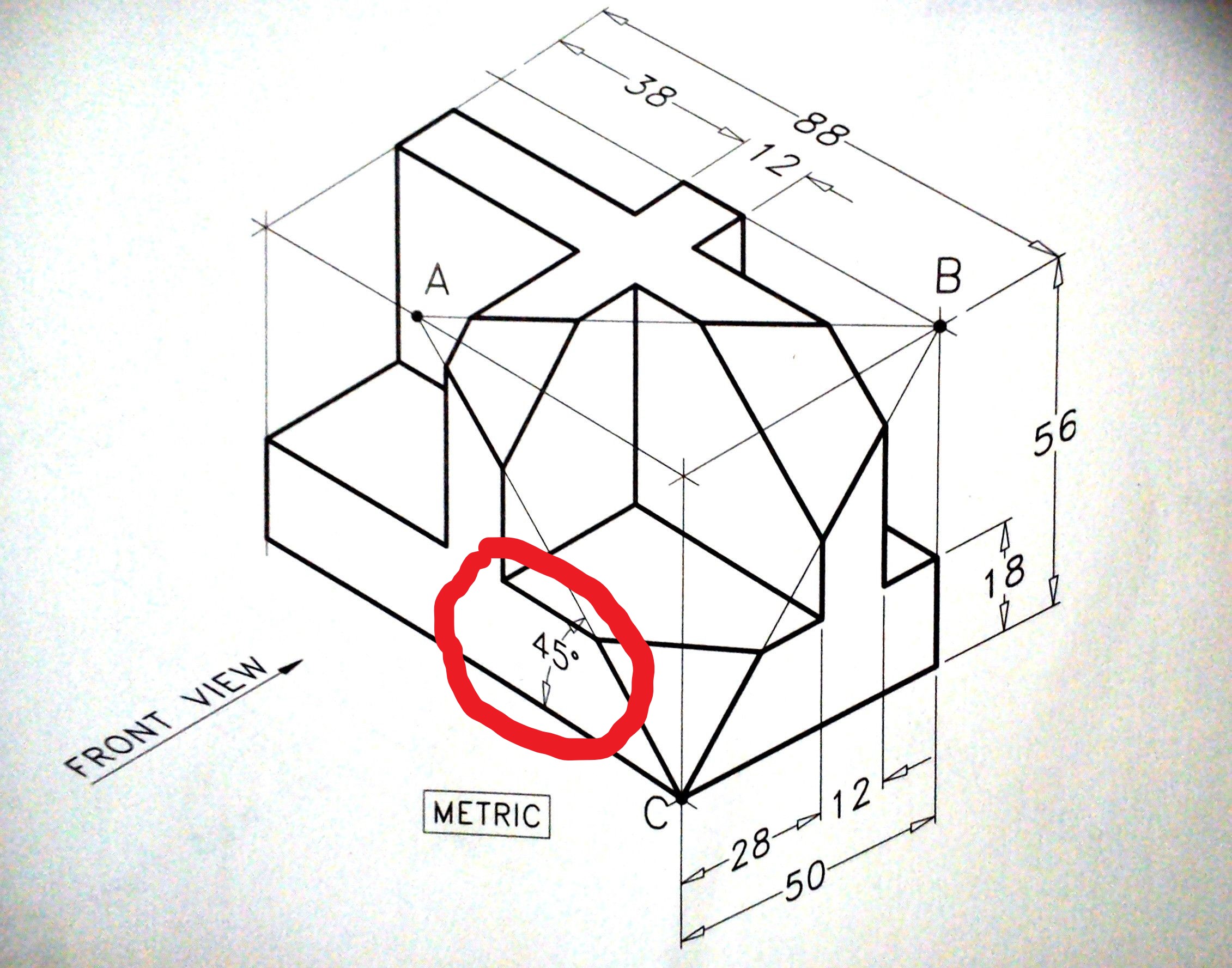

Source: forums.autodesk.com

Increase of muscle strength from isometric quadriceps exercises at different knee angles. Previous research indicates the high relevance of optimal joint angles for individual isometric strength assessment.

Source: www.pinterest.com

Isometric axes, lines and planes: I am building my assets by making screenshots of some 3d models, so i can get any point of view on them.

Source: donsteward.blogspot.co.uk

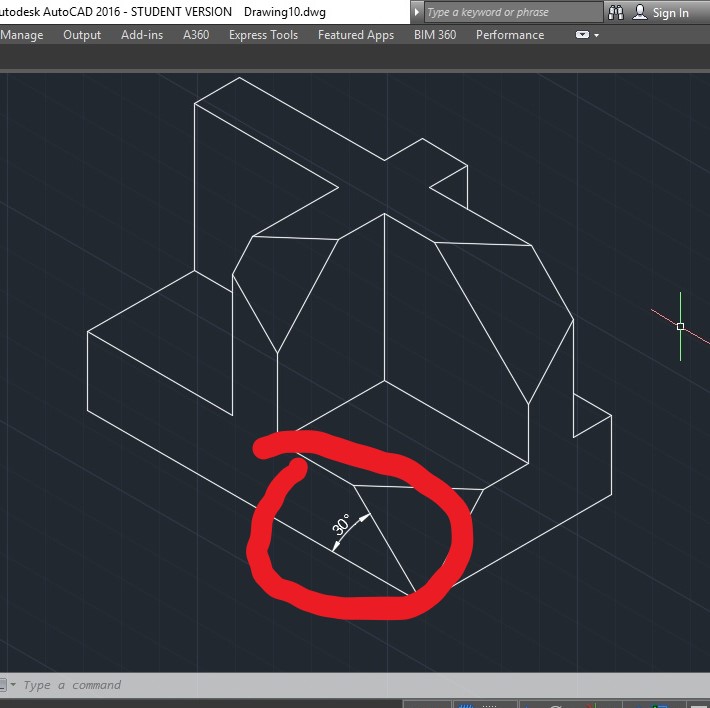

I lost the angles required to input to get a quick isometric view based off of a standard front, right, left, back or bottom view. Let's see how you can create a.

Source: gamedev.stackexchange.com

One vertical axis and two horizontal axes that are drawn at 30 degree angles from. Isometric drawings include three axes:

Source: forums.autodesk.com

The “true isometric grid” has a 30º angle between the x and z axes to the plane. Have you ever tried to create isometric perspectives in blender?

Source: donsteward.blogspot.com

Thus in the isometric projection, the actual lengths of the objects are reduced in the ratio of. Since all lines will have correct measurements and no distortions, you can create volumetric renders of your projects with correct proportions.

Source: donsteward.blogspot.com

I tried to capture them with a pov which gave me angles of 120 everywhere, but once i put those 2d assets in an isometric game engine, it was a bit weird looking. Acute angles measure less than 90 degrees.

√3) And That The Indicated Angles X And Y Are Each 30°.

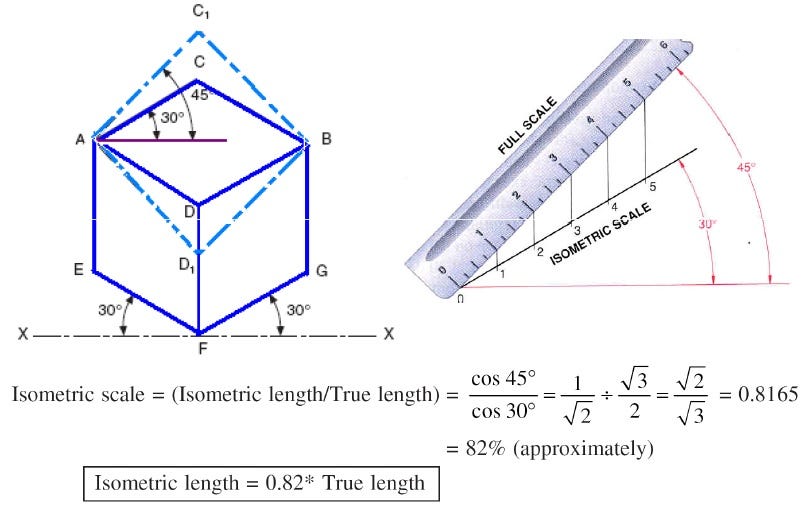

I.e., isometric length = 0.816 actual length. On the other hand, isometric means equal measure. The “true isometric grid” has a 30º angle between the x and z axes to the plane.

😉 Support For Teachers And Parents.

Arccos(sqrt(2/3)) = 35.26439.° from the xy plane. What is the command for isometric mode in autocad? I tried to capture them with a pov which gave me angles of 120 everywhere, but once i put those 2d assets in an isometric game engine, it was a bit weird looking.

> Btw, True Isometric Angle Is Not In Reality 30.

Two are smaller and one is larger than 60°. One vertical axis and two horizontal axes that are drawn at 30 degree angles from. An isometric projection results if the plane is oriented so that it makes equal angles (hence “isometric,” or “equal measure”) with the three principal planes of the object.

Let's See How You Can Create A.

Calculate angular offsets in the pipe run. If you want to try for a 45 degree angle, set your subject at 0,0,0 and create new cameras at some even offsets like 300,300,300; Isometric drawings include three axes:

Eighteen Young Male Adults Performed Maximum Concentric, Isometric, And Eccentric.

Such a projection is also called an isometric projection, meaning equal measure. That is, while all of the parallel edges of the cube are projected as parallel lines, the horizontal edges are drawn at. To get an 1:1 view.
